Home > Product > Wide Bandth Module > Wideband 100W GaN Drone Jammer Module | 1500~2500MHz Band
Product Overview The Drone Jammer Module is a robust, general-purpose RF power amplifier designed for systems demanding high power and reliability across a wide frequency spectrum. Leveraging Galliu……
The Drone Jammer Module is a robust, general-purpose RF power amplifier designed for systems demanding high power and reliability across a wide frequency spectrum. Leveraging Gallium Nitride on Silicon Carbide (GaN on SiC) technology in a Class AB configuration, it delivers 100W of saturated output power over an instantaneous bandwidth of 1500 to 2500MHz. Its compact, lightweight design is complemented by superior thermal handling and ruggedness, making it an ideal solution for challenging environments in commercial, defense, and laboratory applications.
High Power & Instantaneous Wide Bandwidth: Provides 100W output power across the full 1.5-2.5 GHz range without tuning, enabling frequency-agile operations.
Advanced GaN on SiC Design: Offers high efficiency, excellent thermal conductivity via a copper sub-carrier, and proven reliability for long-term performance.
Compact & Integration-Ready: Features a small form factor, light weight, and standard 50-ohm impedance for straightforward integration into existing systems.
Rugged Construction: Built for high reliability in extended operating temperature ranges, supported by patented thermal management.
| Parameter | Symbol | Unit | Min | Typ | Max |
|---|---|---|---|---|---|
| Operating Frequency | F<sub>O</sub> | MHz | 1500 | – | 2500 |
| Saturated Output Power (CW) | P<sub>SAT</sub> | W | – | 100 | – |
| Power Gain (@ 0 dBm Input) | G<sub>P</sub> | dB | – | 50 ±3 | – |
| Gain Flatness | ΔG<sub>P</sub> | dB | – | – | ±3 |
| Efficiency | EFF | % | – | 30 | – |
| Input for Rated Output | P<sub>IN</sub> | dBm | – | -2 ±3 | – |
| Harmonics (2nd, 3rd) | H<sub>N</sub> | dBc | 10 | – | – |
| Input / Output VSWR | VSWR | :1 | – | – | 2.0 |
| DC Operating Voltage | V<sub>DC</sub> | V | – | 28-30 | – |
| DC Current (@ 100W Out) | I<sub>DC</sub> | A | – | 10 | – |
Environmental & Physical Specifications
| Category | Parameter | Unit | Rating / Value |
|---|---|---|---|
| Environmental | Operating Case Temperature | °C | -20 to +85 |
| Storage Temperature | °C | -40 to +105 | |

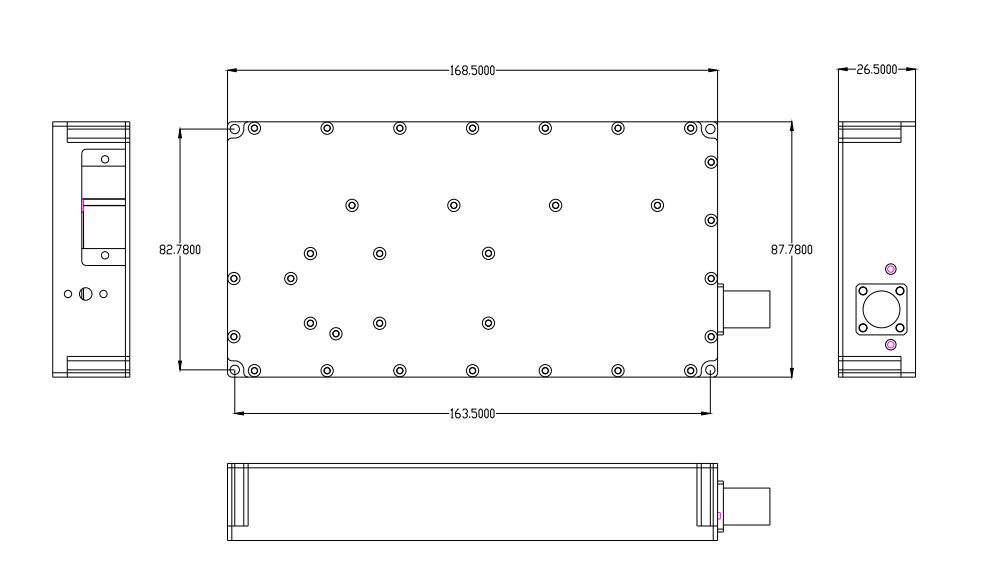

| Physical | Dimensions (Excl. Connectors) | mm | 168.5 x 82.8 x 26.5 |
| Weight | kg | 0.75 | |
| RF Connectors | – | MCX-F (Input), N-F (Output) | |
| Cooling | – | External Heat-sink Required |
| Application Sector | Specific Use Cases |
|---|---|
| Test & Measurement | RF Component Testing, Signal Source Amplification, Lab R&D |
| Communications | Base Station Testing, Broadband Communication Systems |
| Aerospace & Defense | Radar Systems, Electronic Warfare (EW), Avionics |
| General Purpose | Satellite Communications, Medical Imaging, Industrial RF |
The amplifier requires a 28-30V DC power supply and an external heat-sink for optimal thermal performance. It comes equipped with standard RF connectors (MCX Input, N-Type Output) and includes monitoring pins for status and control, facilitating seamless integration into complex systems.
With its combination of high power, true instantaneous bandwidth, and the efficiency of GaN on SiC technology, the Drone Jammer Module stands as a reliable and versatile power amplification solution. Its detailed electrical performance, rugged environmental ratings, and compact design make it a superior choice for enhancing system capability where performance and size are critical.
