300–1500MHz Wideband GaN Drone Jamming Module | 100W Counter-UAS RF Power Amplifier

300–1500MHz Wideband Drone Jamming Module (100W) Product Overview This 300–1500MHz wideband drone jamming module is a high-power RF solution designed for counter-UAS and anti-drone interference syst……

Send Inquiry

Functional characteristics

300–1500MHz Wideband Drone Jamming Module (100W)

Product Overview

This 300–1500MHz wideband drone jamming module is a high-power RF solution designed for counter-UAS and anti-drone interference systems. Built on GaN-on-SiC technology, the module delivers 100W continuous output power with excellent efficiency, thermal stability, and rugged reliability.

Covering multiple critical UAV control, telemetry, and data-link frequency bands, this module is ideal for portable, vehicle-mounted, and fixed drone countermeasure platforms.

Key Features

Ultra-wide operating frequency: 300–1500MHz
100W CW output power for effective UAV disruption
Class AB GaN amplifier with high linearity
Instantaneous wideband jamming capability
Compact size and lightweight structure
50Ω matched RF input and output
Designed for harsh operational environments
External control and monitoring interfaces supported

Counter-Drone Application Scenarios

This RF jamming module is widely used in:

Multi-band drone signal interference systems
Fixed anti-drone defense installations
Vehicle-mounted counter-UAS platforms
Portable and backpack drone jammer equipment
Integrated radar-jamming or detection-jamming systems

Its wide frequency coverage allows simultaneous suppression of remote control, telemetry, and data transmission links used by commercial and customized UAVs.

Electrical Specifications

(@ VDC = 30V, TC = 50°C, 50Ω System)

Parameter	Unit	Typical Value
Operating Frequency	MHz	300 – 1500
Instantaneous Bandwidth	MHz	1200
Peak Output Power (CW)	W	100
Input Power	dBm	-2 ±3
Maximum Safe Input Power	dBm	5
Power Gain @ 0dBm Input	dB	50 ±3
Gain Flatness	dB	±3
Efficiency	%	≥30
Harmonics @ 100W Output	dBc	≥10
Spurious Suppression	dBc	≥60
Input VSWR	—	≤2:1
Output VSWR	—	≤2:1
Operating Voltage	V	28–30
Current Consumption @100W	A	10

Environmental Specifications

Parameter	Rating
Operating Case Temperature	-20°C to +85°C
Storage Temperature	-40°C to +105°C
Relative Humidity	95% RH (Non-condensing)

Operating & Monitoring Voltages

Parameter	Specification
Nominal Operating Voltage	28–32V DC (±2%)
HPA Enable Voltage	28V
Temperature Monitor Output	0.75V @ 25°C (1°C / 0.01V)
Current Monitor	Supported

Mechanical Specifications

Item	Specification
Weight	0.75 kg

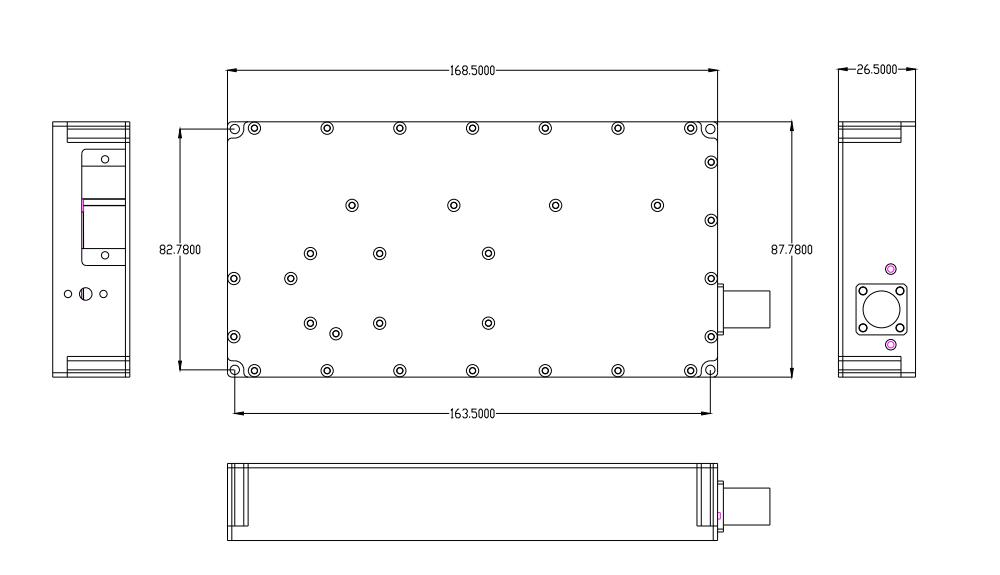

Dimensions	168.5 × 82.8 × 26.5 mm (without connectors)
RF Input Connector	MCX Female
RF Output Connector	N Female
DC Power Connector	Feed-through capacitor, Male
Cooling Method	External heat sink required

Control & Interface Pin Description

Pin	Function	Pin	Function
1	+28V Power Input	5	External TTL
2	Ground (GND)	6	PA Enable (PA_EN)
3	External TTL	7	RS485B
4	RS485A	8	NC

Advantages for Anti-Drone Systems

Wideband coverage reduces the need for multiple narrowband modules
High output power ensures long-range UAV disruption
GaN technology improves efficiency and thermal reliability
Modular design enables easy integration into custom counter-UAS solutions

Conclusion

The 300–1500MHz 100W drone jamming module is a powerful and flexible RF solution for modern counter-drone defense systems. Its wide frequency coverage, compact form factor, and robust performance make it an excellent choice for professional anti-UAS applications requiring reliability and scalability.
