100W Wideband GaN Drone Jamming Module (2500–4000MHz)

The 100W Wideband GaN Drone Jamming Module is a high-power RF amplification solution designed for counter-drone and anti-UAV systems. Operating across 2500MHz to 4000MHz, this module effectively covers common drone control, telemetry, and data-link frequency bands.

Built with GaN on SiC technology and a Class AB architecture, the module delivers stable high-power output, wide instantaneous bandwidth, and excellent reliability, making it ideal for fixed, mobile, and portable drone countermeasure platforms.

Key Features for Counter-Drone Applications

Wide jamming frequency coverage: 2500–4000MHz
100W RF output power for extended jamming range
Class AB GaN on SiC design for high efficiency and durability
Instantaneous wideband operation for multi-band drone disruption
High gain with excellent gain flatness
50Ω input and output for easy system integration
Compact size and lightweight design
Rugged construction for harsh operating environments
Patented thermal management for continuous high-power operation

Anti-Drone Application Description

This RF jamming module is engineered to serve as a core power amplification unit in drone jammer and counter-UAV systems. It can be paired with noise sources, signal generators, or digital jamming systems to disrupt drone command and control links, downlink communications, and data transmission channels.

The GaN power device is mounted on a copper sub-carrier, combined with patented thermal technology to ensure efficient heat dissipation during prolonged jamming operations. This enables stable performance even in high-duty-cycle or continuous transmission scenarios commonly required in anti-drone missions.

Electrical Specifications

(@ VDC = 30V, TC = 50°C, 50Ω System)

Parameter	Unit	Min	Typ	Max
Operating Frequency	MHz	2500	–	4000
Instantaneous Bandwidth	MHz	–	3250	–
RF Output Power (CW)	W	–	100	–
Input Power	dBm	–	-2 ±3	–
Maximum Input Power (No Damage)	dBm	–	–	5
Power Gain @ 0dBm Input	dB	–	50 ±3	–
Gain Flatness	dB	–	–	±3
Drain Efficiency	%	–	30	–
Harmonics @100W Output	dBc	≥10	–	–
Spurious Suppression	dBc	≥60	–	–
Input VSWR	–	–	–	≤2:1
Output VSWR	–	–	–	≤2:1
Operating Voltage	V	–	28–30	–
Current Consumption @100W	A	–	10	–

Environmental Specifications

Parameter	Unit	Rating
Operating Case Temperature	°C	-20 ~ 85
Storage Temperature	°C	-40 ~ 105
Relative Humidity (Non-Condensing)	%RH	95

Operating Voltage & Monitoring

Parameter	Unit	Specification
Supply Voltage	V	28–30V (±2%)
PA Enable	V	TTL Control
Current Monitor	V	Available
Temperature Monitor	V	0.75V @25°C (1°C / 0.01V)

Mechanical Specifications

Parameter	Unit	Typical
Weight	kg	0.75

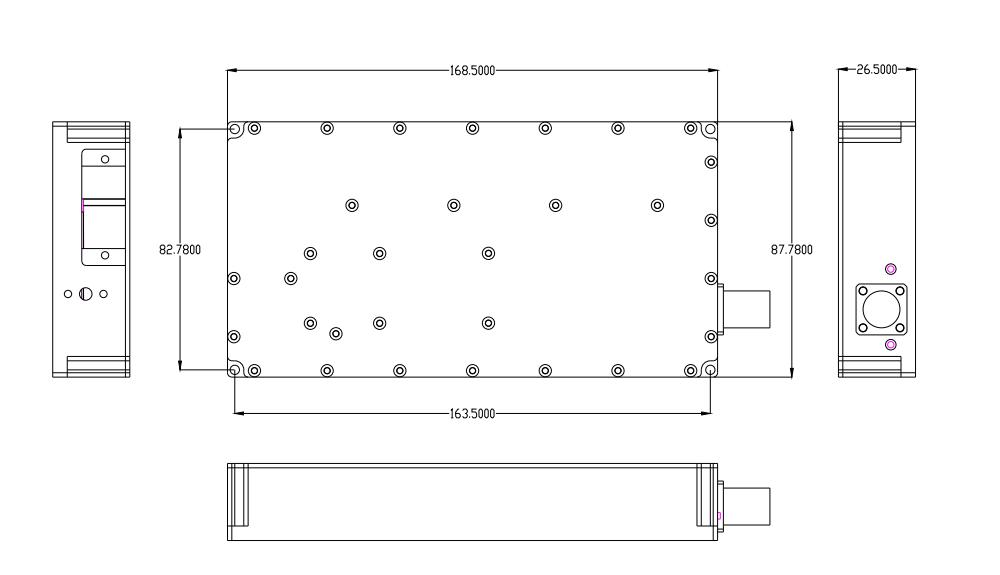

Dimensions	mm	168.5 × 82.8 × 26.5 (Without connectors)

Connectors & Cooling

RF Input: MCX Female
RF Output: N Female
DC Power: Through core capacitor, Male connector
Cooling Method: External heat sink required

Pin Configuration

Pin	Function	Pin	Function
A1	–	1	+28V
A2	–	2	GND
A3	–	3	External TTL
A4	–	4	RS485A
A5	–	5	External TTL
A6	–	6	PA_EN
A7	–	7	RS485B
A8	–	8	NC

Typical Counter-Drone Applications

Fixed anti-drone jamming stations
Vehicle-mounted drone jammer systems
Portable and backpack drone jammers
Critical infrastructure protection (airports, power plants, borders)
Military and homeland security counter-UAV solutions
