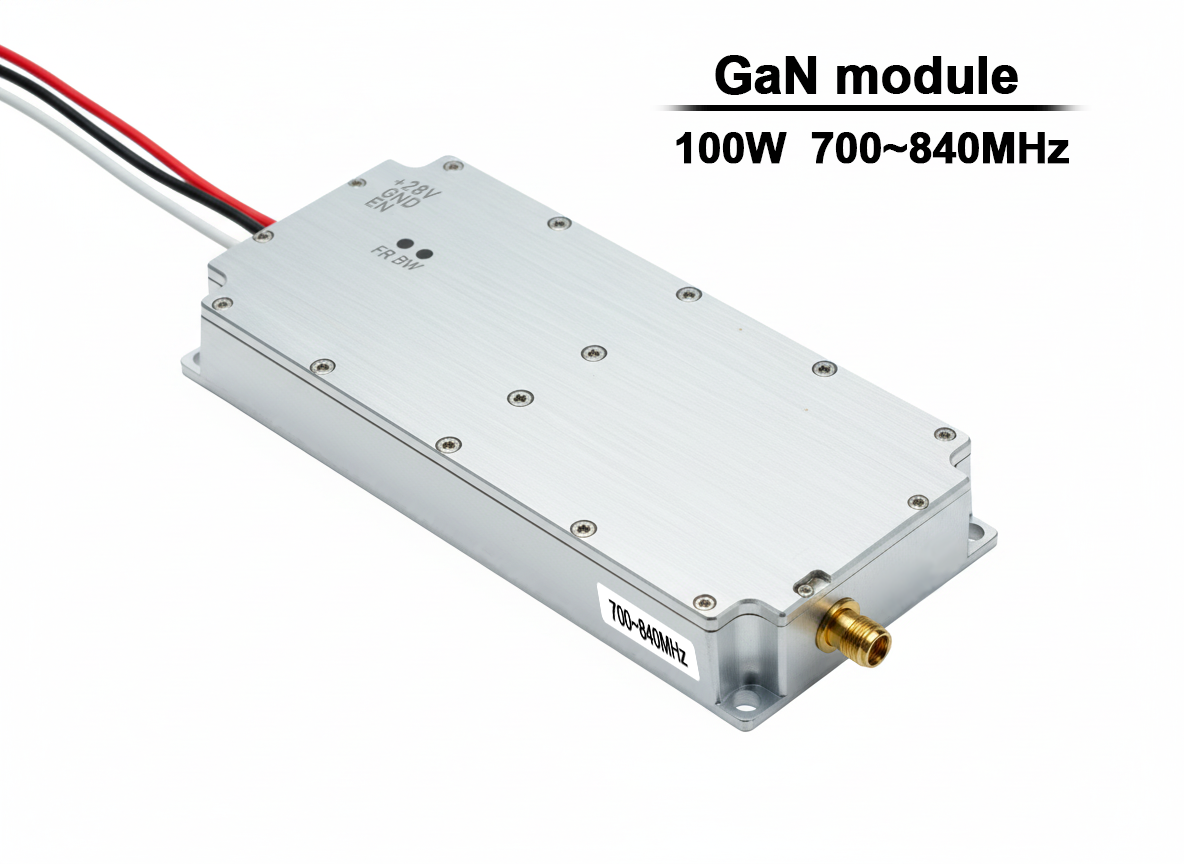

100W Drone Jammer Module 700-840MHz | High-Power GaN Countermeasure Module

100W Drone Jammer Module (700-840MHz) | High-Power GaN Countermeasure Solution Our 100W Drone Jammer Module is a robust and compact RF module engineered for effective UAV neutralization within the 7……

Send Inquiry

Functional characteristics

100W Drone Jammer Module (700-840MHz) | High-Power GaN Countermeasure Solution

Our 100W Drone Jammer Module is a robust and compact RF module engineered for effective UAV neutralization within the 700-840MHz frequency band. Utilizing advanced Gallium Nitride (GaN) on Silicon Carbide technology, this module delivers exceptional output power (100W) in a small form factor. Its design prioritizes high reliability, ruggedness, and superior thermal management through patented techniques, making it suitable for integration into demanding portable, mobile, or fixed-site counter-drone systems.

Featuring a built-in high-speed noise-modulated signal source and comprehensive status monitoring via LED indicators, this module offers a ready-to-integrate, high-performance jamming solution for critical security applications.

Technical Specifications

Parameter	Specification / Typical Value
Frequency Range	700 – 840 MHz
Output Power	100 W (50 dBm ±1)
Simulated Sweep Speed	270 KHz (Customizable 100-500 KHz)
Input Signal Source	Built-in High-Speed Noise Modulated Source (VCO, DDS, SDR customizable)
Input/Output Impedance	50 Ohms
Operating Voltage	28V (Range: 28 – 32V)
Operating Current	≤ 9.2A
Operating Temperature	-20°C to +65°C
RF Connector	N-Type Female
Indicators (LED)	Power, Over-voltage, Over-temperature
Dimensions (LWH)	150 x 80 x 22 mm
Weight	800 g

Key Features & Advantages

High-Power GaN Technology: Class AB GaN-on-SiC design provides high power density, wide instantaneous bandwidth, and excellent efficiency for reliable, long-duration operation.
Compact & Rugged Design: Small footprint (150x80x22mm) and lightweight (800g) enable flexible integration into space-constrained platforms. Built for high reliability in harsh environments.
Integrated Signal Source: Equipped with a built-in, high-speed noise-modulated jamming source, simplifying system design. Supports customization with external VCO, DDS, or SDR sources.
Advanced Thermal Management: Mounted on a copper carrier with patented thermal treatment technology for optimal heat dissipation and sustained high-power performance.
Comprehensive Monitoring: LED indicators provide clear status for power, over-voltage, and over-temperature conditions, enhancing operational safety and maintenance.
Customizable: Offers flexibility with customizable sweep speeds (100-500KHz) and optional input signal sources to meet specific mission requirements.

Applications

This high-power jammer module is designed for integration into various counter-UAV and electronic countermeasure (ECM) systems, including:

Man-portable / handheld drone defense systems
Vehicle-mounted rapid deployment platforms
Fixed-site perimeter protection for critical infrastructure
Custom-built broadband jamming suites

Why Choose This 100W Jammer Module?

This module stands out by combining high output power (100W) with the efficiency and robustness of GaN technology in an exceptionally compact package. The inclusion of a built-in signal source, status indicators, and customizability options provides system integrators with a versatile, reliable, and powerful core component for effective drone countermeasures in the 700-840MHz band.
