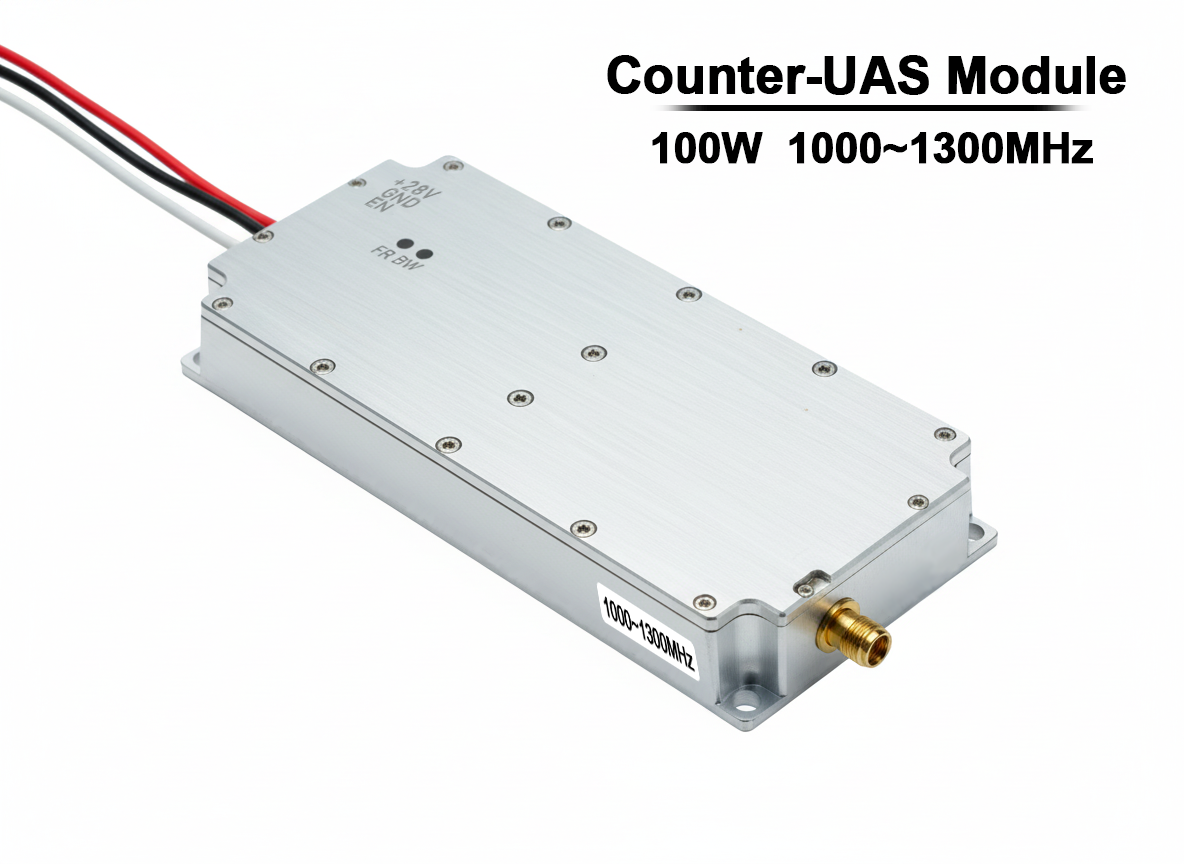

100W High-Power Drone Jammer Module (1000-1300MHz)

The 100W High-Power Drone Jammer Module is a professional-grade RF solution engineered for precision interference against UAV control links and video transmission systems operating in the 1000-1300MHz spectrum. This module is ideal for countering LoRa-based signals and GNSS/GPS L2 frequencies.

With a robust 50±1dBm output power, it provides a long-range suppression field, ensuring total airspace denial for unauthorized drones.

Core Advantages

• High Power Density: Delivers a consistent 100W output in a compact 150*80*22mm form factor.

• Advanced Modulation: Equipped with a built-in high-speed noise modulation source with a scanning speed of 270KHz (customizable up to 500KHz).

• Customizable Architecture: Supports variable signal sources including VCO, DDS, or SDR to meet specific tactical requirements.

• Smart Monitoring: Integrated LED indicators for power status, over-voltage protection, and over-temperature alerts to ensure system longevity.

Technical Specifications

Key Performance Features

1. Precision Interference

By utilizing high-speed noise modulation, the module creates a “white noise” wall that effectively drowns out the signal-to-noise ratio (SNR) of incoming drone commands, forcing the UAV to hover, return home, or land.

2. Robust Protection System

Designed for harsh environments, the module includes safety protocols for:

• Over-Voltage: Prevents damage from power surges.

• Over-Temperature: Automatically monitors thermal loads to prevent hardware failure during continuous operation.

3. Flexible Integration

The slim profile and N-type female connector allow this module to be easily integrated into anti-drone suitcases, stationary jammer towers, or vehicle-mounted defense systems.

Applications

• Anti-UAV Defense: Neutralizing FPV and LoRa-controlled drones.

• Signal Isolation: Securing sensitive locations from RF leakage or remote triggers.

• Electronic Countermeasures: Integration into larger EW (Electronic Warfare) suites.
