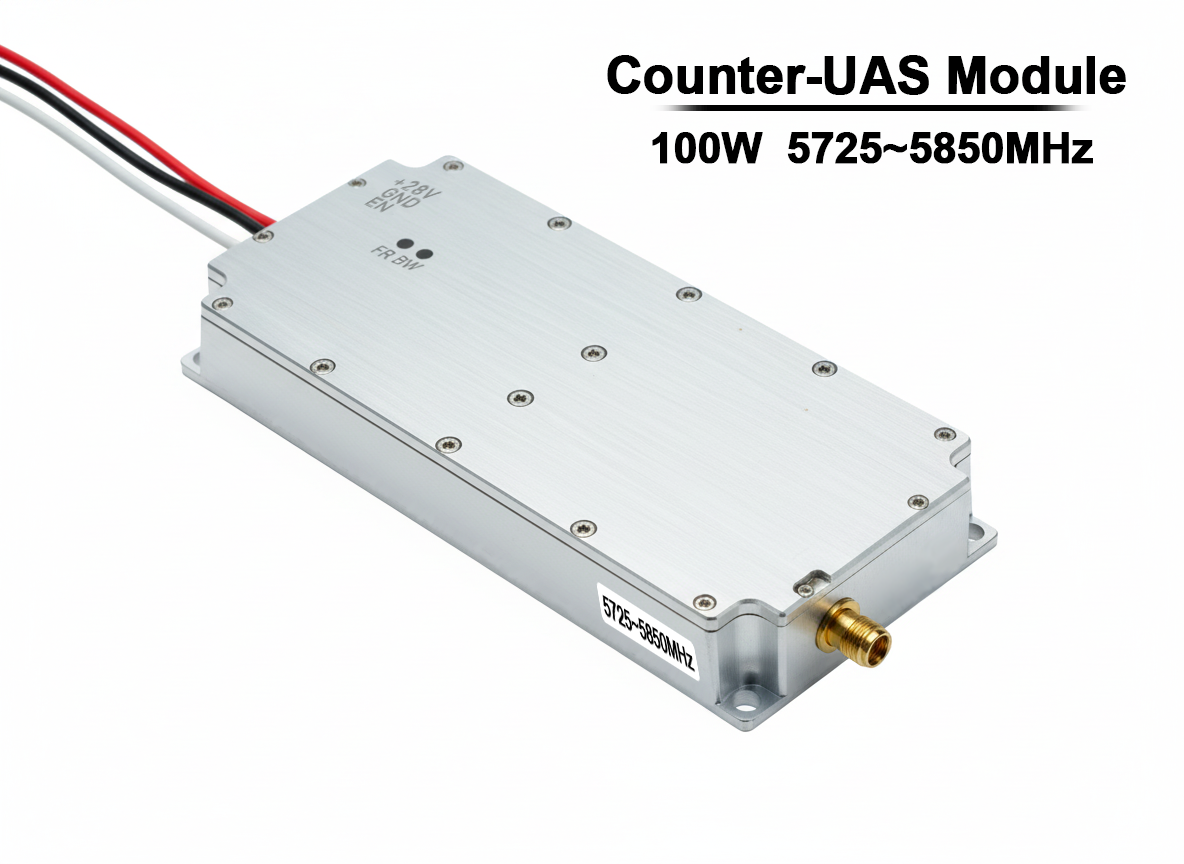

100W 5725-5850MHz Drone Jammer Module | High-Power 5.8GHz RF Interference

Home > Product > Drone Jammer Module > 100W > 100W 5725-5850MHz Drone Jammer Module | High-Power 5.8GHz RF Interference

100W

100W High-Power Drone Jammer Module for 5.8GHz Band Introducing our high-performance 100W RF Jammer Module, engineered to deliver powerful and effective jamming across the 5725-5850MHz frequency spe……

Send Inquiry

Functional characteristics

100W High-Power Drone Jammer Module for 5.8GHz Band

Introducing our high-performance 100W RF Jammer Module, engineered to deliver powerful and effective jamming across the 5725-5850MHz frequency spectrum. This band is critical for targeting the video transmission and control links of many modern commercial drones. Built with reliability and power in mind, this module is the ideal core component for robust Counter-Unmanned Aerial System (C-UAS) solutions requiring decisive signal denial in the 5.8GHz range.

Featuring a patented thermal management design and a compact, rugged form factor, this drone jammer module ensures stable 100W output even under demanding operational conditions. It offers instantaneous wideband coverage, making it highly effective against agile threats.

Core Specifications & Features

The key technical parameters of our 100W 5.8GHz Drone Jammer Module are detailed below:

Parameter	Specification
Frequency Range	5725 – 5850 MHz
Output Power	100W (50 ±1 dBm)
Operating Voltage	28V DC (28-32V Range)
Operating Current	≤ 9.2A
Scanning Speed	270KHz (Customizable 100-500KHz)
Signal Source	Built-in High-Speed Noise Modulation Source (VCO, DDS, SDR Customizable)
Impedance	50 Ohms Input / Output
Connector	N-Type Female
Operating Temperature	-20°C to +65°C
Dimensions	150 x 80 x 22 mm
Weight	~800g
Indicators	Power, Over-Voltage, Over-Temperature
Key Advantages	Patented Thermal Design, Instantaneous Wideband Jamming, Compact & Robust, High Reliability

Product Highlights

Targeted High-Power Output: Provides 100W of effective jamming power specifically in the 5.8GHz (5725-5850MHz) band, crucial for neutralizing drone video downlinks and control signals.
Advanced Thermal Management: Our proprietary cooling technology ensures optimal heat dissipation, guaranteeing sustained high-power performance and enhanced long-term reliability.
Instant Wideband Coverage: Capable of jamming the entire 125MHz bandwidth simultaneously, offering a high probability of intercept and disruption against fast-hopping or frequency-agile targets.
Rugged & Integrated Design: Built for harsh environments and easy integration into mobile, portable, or fixed-site C-UAS platforms.
Customization Ready: We offer extensive customization options, including tailoring the scanning speed, signal source type (VCO/DDS/SDR), and other parameters to fit your specific system architecture and operational needs.

Primary Applications

Counter-UAS (C-UAS) Defense Systems
Fixed-Site Perimeter Protection for Critical Infrastructure
Mobile Electronic Countermeasure (ECM) Platforms
Security & Military Signal Denial Operations

For integration into your anti-drone system or to discuss custom frequency/power requirements, contact our engineering team today.
