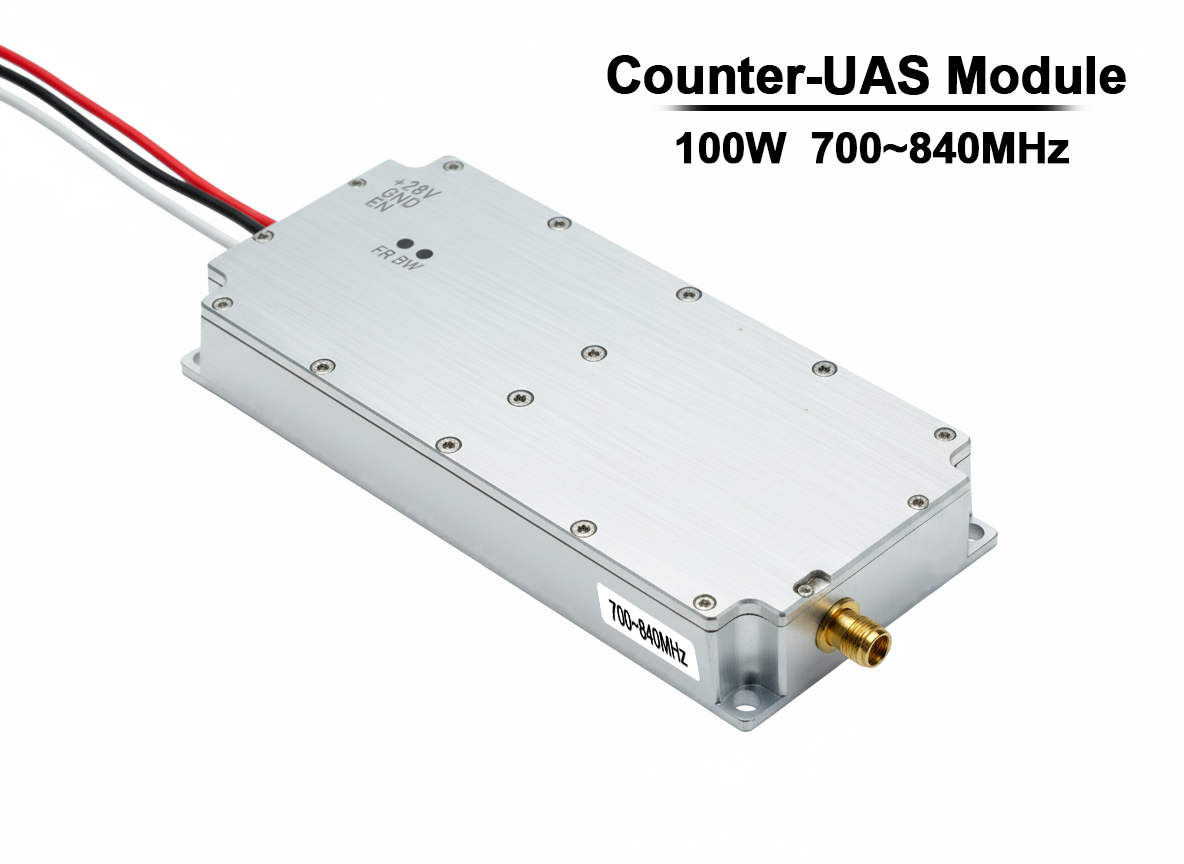

100W 700–840MHz Drone Jammer Module | LDMOS / LoRa Anti-Drone Jamming Module

Product Overview

The 700–840MHz 100W Drone Jammer Module is a high-power LDMOS-based LoRa countermeasure module designed for effective UAV signal interference in the sub-GHz frequency band. With a stable 100W continuous output and an integrated high-speed noise modulation signal source, this drone jammer module delivers strong and reliable jamming performance for professional counter-UAV applications.

Its rugged industrial design and wide customization options make it ideal for integration into anti-drone systems, vehicle-mounted platforms, portable jammer equipment, and fixed-site drone defense solutions.

Key Features

Operating frequency range: 700–840MHz
High output power: 100W (50 ±1 dBm)
LDMOS power amplifier design optimized for LoRa interference
Built-in high-speed noise modulation signal source
Adjustable analog sweep speed
Optional signal sources: VCO / DDS / SDR
Industrial-grade construction for stable long-term operation
LED indicators for real-time status monitoring

Technical Specifications

Parameter	Specification	Notes
Frequency Range	700–840MHz	Sub-GHz / LoRa band
Output Power	50 ±1 dBm (100W)	Continuous output
Operating Voltage	DC 28V	Range: 28–32V
Operating Current	≤9.2A	At 100W output
Sweep Speed	270kHz	Customizable: 100–500kHz
Signal Source	Built-in high-speed noise modulation	Optional VCO / DDS / SDR
Operating Temperature	-20°C to +65°C	Normal operation
RF Connector	N Female	50Ω impedance
LED Indicators	Power, Over-Voltage, Over-Temperature	Status display
Dimensions	150 × 80 × 22 mm	Compact structure
Weight	Approx. 800 g	Rugged design

Applications

Drone jammer and counter-UAV systems
LoRa communication signal blocking
RF and electronic countermeasure equipment
Vehicle-mounted and fixed-site drone defense
UAV control and data link interference

Customization Options

Frequency tuning within 700–840MHz
Signal source options: Noise / VCO / DDS / SDR
Adjustable sweep speed
Mechanical dimensions and connector customization
