Product Overview

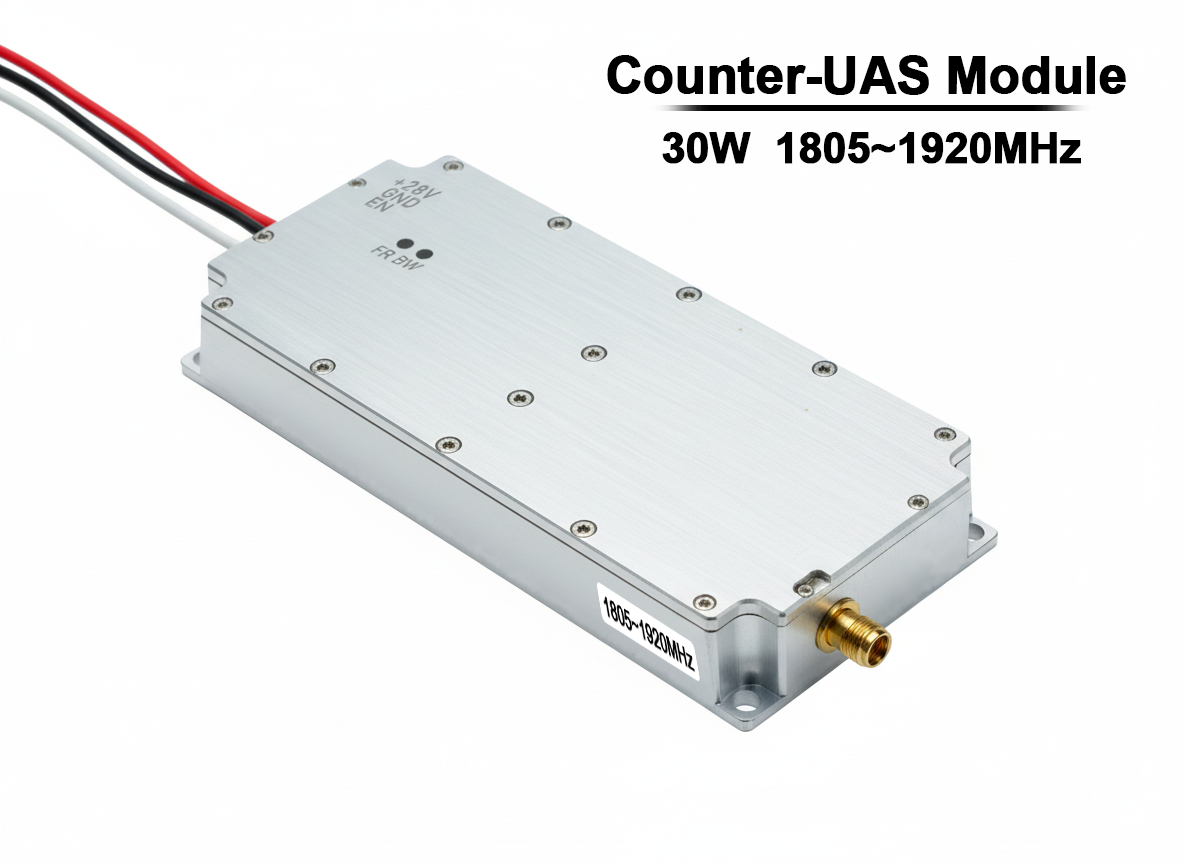

The 1805-1920MHz 30W Integrated Jammer Module is a high-performance, lightweight solution designed for precision drone countermeasures. Unlike standard power amplifiers, this module features a built-in high-speed analog sweep signal source, providing an all-in-one interference solution that eliminates the need for external signal generators.

With an optimized power efficiency of ≥40% and a ultra-compact 210g frame, it is specifically engineered for portable, handheld, and vehicle-mounted UAV defense systems requiring reliable suppression of control and telemetry links.

Key Highlights

• All-in-One Design: Integrated RF power amplifier and high-speed sweep interference source.

• High Power-to-Weight Ratio: Delivers 30W of output power while weighing only 0.21kg.

• Energy Efficient: Advanced circuit design ensures efficiency ≥40%, extending battery life for portable devices.

• Seamless Integration: Features SMA-Female connectors and standard TTL switch control for easy system deployment.

Technical Specifications

Operational Features

Integrated Signal Generation

The module utilizes a specialized internal sweep source that covers the 1805-1920MHz spectrum with high-speed modulation. This ensures maximum spectral density and effective disruption of frequency-hopping UAV signals.

Precision Control

The Switch Control logic allows for rapid activation/deactivation of the jamming signal:

• Logic High (+5V) or Floating: Module is active (Jamming ON).

• Logic Low (GND): Module is inactive (Jamming OFF).

Thermal & Mechanical Reliability

The housing is constructed from high-grade aluminum to facilitate heat dissipation. At only 21mm thick, it can be easily stacked or integrated into tight enclosures for multi-band counter-UAV (C-UAV) platforms.

Applications

• Portable UAV Jammers: Handheld “anti-drone guns” and backpack-style interceptors.

• Critical Infrastructure: Protection of industrial sites and government facilities from drone surveillance.

• Signal Masking: Temporary exclusion zones for unauthorized RF communication.

Technical Support & Customization

We provide OEM services for frequency adjustments and custom enclosure designs. For high-power arrays, multiple modules can be synchronized to provide 360-degree coverage.
