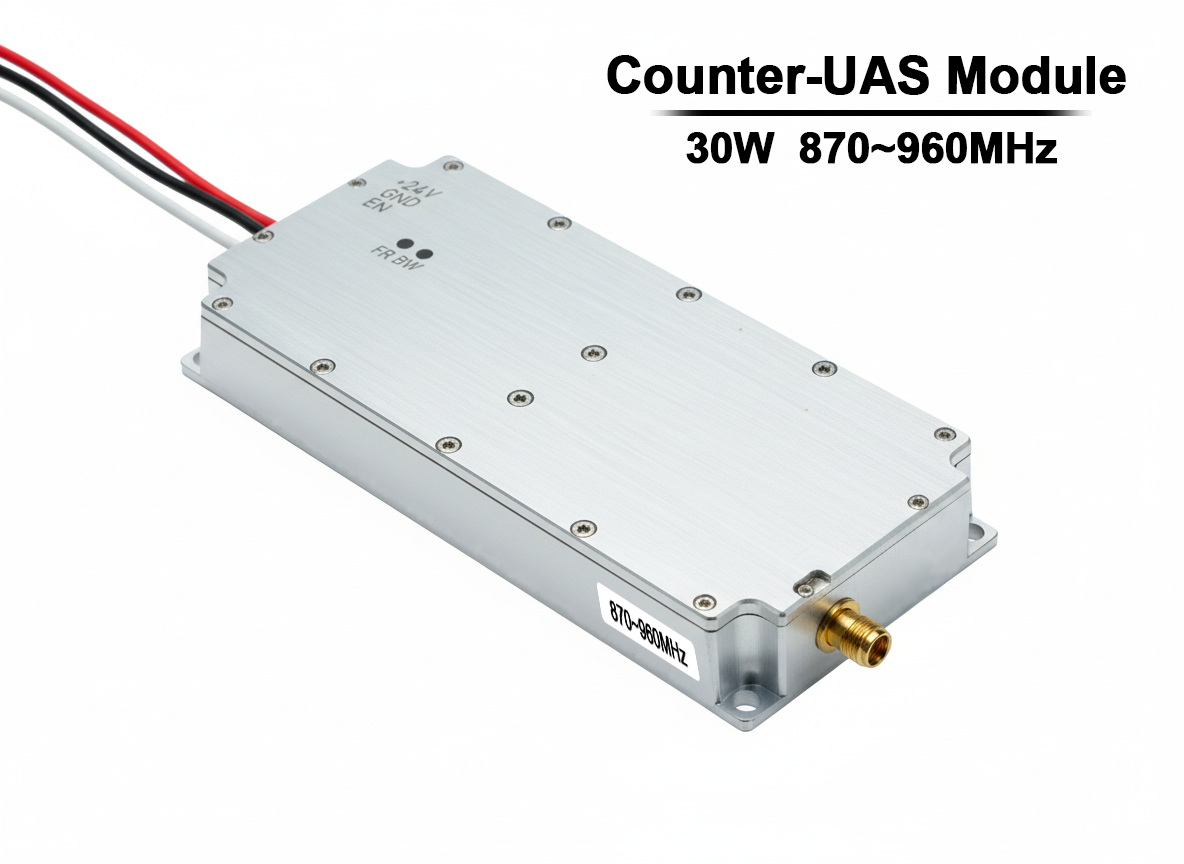

Compact 30W Jammer Module for Reliable 870-960MHz Signal Disruption

Engineered for modern portable electronic defense systems, our 30W Analog Jammer Module delivers effective wideband interference across the 870-960MHz spectrum. This frequency range is critical for targeting various commercial drone control links, telemetry systems, and certain cellular communications. Designed with a focus on size, weight, and power efficiency, this all-in-one module integrates the essential components—including a high-speed internal sweep generator—into a remarkably compact form factor. It provides a powerful, ready-to-deploy core for systems where portability and rapid deployment are paramount.

This module is built for reliability in field conditions. Its efficient power architecture ensures maximum output with minimal battery drain, making it an excellent choice for integration into man-portable units, vehicle-mounted systems, or covert security installations that require robust signal denial capabilities without the burden of excessive bulk or cooling demands.

Design Philosophy & Key Advantages

• Optimized for Portability: Exceptionally small and lightweight design (115.5 x 46.5 x 21mm, 0.21kg) allows for seamless integration into space-constrained platforms and portable cases.

• Effective Power Output: Provides a substantial 30W of RF jamming power, creating a reliable denial bubble against targeted signals in the 870-960MHz band.

• Integrated Operation: Comes complete with a built-in high-speed analog sweep source. This plug-and-play functionality removes the complexity and cost associated with external signal generators, accelerating system development.

• High-Efficiency Performance: Operates at ≥40% efficiency from a standard 24-29VDC power source. This translates to longer operational uptime for battery-powered applications and reduced thermal management overhead.

• Simplified System Interface: Features straightforward TTL control (ON: +5V/Open, OFF: GND) and a standard SMA-F output connector, ensuring compatibility with common system controllers and antenna assemblies.

Complete Technical Specifications

The table below provides a detailed overview of all performance parameters and physical characteristics for engineering and integration purposes.

Deployment Scenarios and Typical Uses

This versatile jammer module is suited for a range of applications requiring targeted RF denial in a portable or low-SWaP (Size, Weight, and Power) format.

• Man-Portable Counter-Drone Kits: The core component of backpack-style or briefcase-style rapid-response systems for neutralizing rogue drones at public events or near secure perimeters.

• Mobile Security Platforms: Integration into SUVs, all-terrain vehicles, or temporary observation posts to provide on-the-move or short-notice signal jamming capabilities.

• Covert and Fixed-Site Protection: Installation within discreet housings for the protection of sensitive locations, where its small size is a significant advantage.

• Focused Communication Denial: Employment in scenarios requiring temporary, localized disruption of specific communication channels within the 870-960MHz range.
