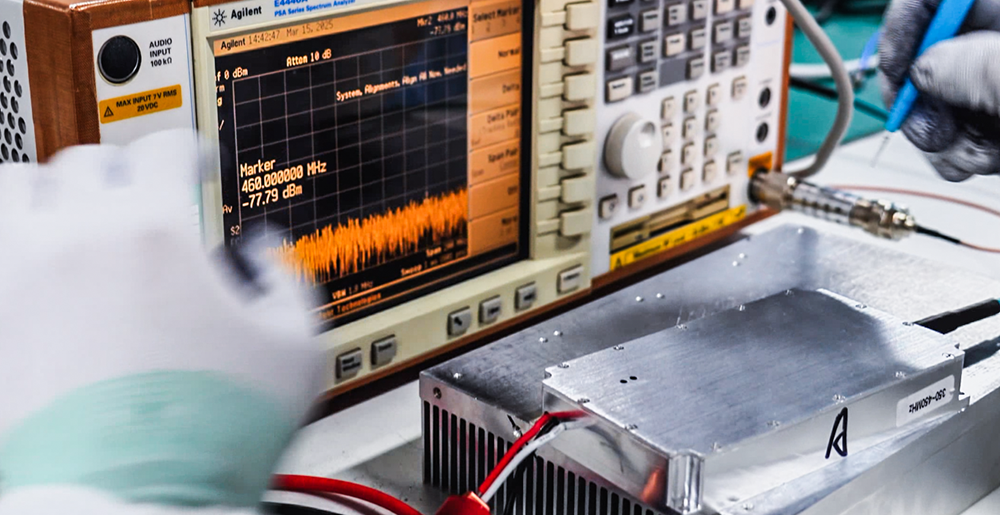

How Much Power Does a Drone Jammer Module Need?

Understanding Drone Jammer Power: A Practical Guide

When evaluating an anti-drone solution, one of the most common questions asked by security professionals, hobbyists, and system integrators is: “How much power does a drone jammer module actually need?”

The answer isn’t a fixed number—it depends on several engineering and operational factors. In this article, we’ll break down the relationship between output power, effective jamming range, frequency bands, and real-world limitations. By the end, you’ll have a clear understanding of what wattage works for your specific scenario.

What Does a Drone Jammer Module Do?

A drone jammer module emits radio frequency (RF) signals on the same frequencies that consumer and commercial drones use for control and video transmission. Common bands include:

• 2.4 GHz (control & telemetry)

• 5.8 GHz (video downlink)

• GPS L1 / L2 (1.5–1.6 GHz) for navigation disruption

The jammer’s goal is to overpower the drone’s receiver with noise or malicious signals, causing the drone to lose connection and trigger its failsafe (e.g., landing or return-to-home). The power of the jammer directly influences how far away you can disrupt the drone.

Key Factors That Determine Required Power

1. Desired Jamming Distance

This is the most significant variable. As a rule of thumb, RF signal power must increase by a factor of 4 (6 dB) to double the jamming range in free space, and even more in cluttered environments.

Note: These figures assume a modest antenna gain (2–5 dBi). Using higher‑gain antennas can significantly reduce power needs for the same range.

2. Frequency Band Characteristics

Lower frequencies (e.g., GPS at 1.5 GHz) propagate farther than higher frequencies (5.8 GHz) at the same power level. To jam 5.8 GHz video links over the same distance as 2.4 GHz control links, you may need 2–4 times more power due to higher path loss.

3. Antenna Gain and Directivity

A jammer module paired with a directional antenna (e.g., panel or helical) concentrates power into a beam. This can reduce power requirements by 10–20× compared to an omnidirectional antenna for the same effective jamming range. For stationary defenses, high‑gain directional antennas are highly recommended.

4. Drone’s Receiver Sensitivity

Consumer drones have receivers with sensitivity around -85 to -95 dBm. A professional or military drone may have better filtering and sensitivity (-105 dBm or lower), requiring more jammer power to overcome.

5. Environmental Factors

Urban areas with many RF signals, trees, and buildings cause reflections and attenuation. Open rural or desert environments require less power for the same line‑of‑sight range. For indoor or warehouse protection, 1–5W is often sufficient to cover an entire facility.

Typical Power Ranges by Module Type

Let’s look at real‑world product categories (based on commercially available drone jammer modules):

• Low‑power portable jammer (handheld) – 1W to 10W total (sum of all bands).

  • Range: 100–500 m.

  • Battery powered, limited duty cycle.

• Medium‑power fixed jammer – 20W to 50W per band.

  • Range: 800 m – 1.5 km.

  • Mains powered, active cooling required.

• High‑power military/defense jammer – 100W to 200W+ per band.

  • Range: 3–5 km or more.

  • Vehicle or ground station mounted, sophisticated thermal management.

Important: Many low‑cost “100W” modules on online marketplaces refer to peak pulse power or input power, not effective radiated power (ERP). Always check continuous wave (CW) output and antenna gain.

The Trade‑off: More Power Isn’t Always Better

Increasing power comes with significant drawbacks:

1. Heat dissipation – A 100W RF module generates roughly 60–80W of heat. Without proper heatsinks and fans, it will overheat in minutes.

2. Power source – Portable units above 20W require heavy batteries (e.g., Li‑ion packs > 6S). Fixed units need robust AC‑DC supplies.

3. Regulatory limits – In most countries, jammers are illegal for civilian use. Even for authorized users (military, law enforcement), excessive power can interfere with non‑target systems miles away.

4. Size and weight – High‑power amplifiers and cooling systems make modules bulky and impractical for drones or backpacks.

Thus, the optimal approach is to use the minimum power needed plus a margin of 6–10 dB to account for fading. A well‑designed system often combines medium power (20–30W) with directional tracking antennas rather than brute‑force high wattage.

Real‑World Example Calculation

Suppose you want to jam a DJI Phantom 4 at 1 km distance. The drone’s 2.4 GHz receiver sensitivity is -90 dBm. A typical path loss model (free space + 15 dB environmental loss) gives a required jammer signal at the drone’s location of about -80 dBm to achieve a 10 dB jamming‑to‑signal ratio.

Using the Friis transmission equation with a 3 dBi antenna on both sides, you would need roughly 12–15W of transmit power per band. Adding a 10 dBi directional antenna on the jammer reduces that to 2–3W. That’s why professional systems use antennas with gain.

Conclusion: So, How Much Power Is Needed?

There is no single answer, but here is a practical summary:

• For close‑range (home, office, small event) – 1 to 5W is usually enough.

• For medium‑range (stadium, prison, critical infrastructure) – 20 to 50W per band with moderate antenna gain.

• For long‑range (military base, border protection) – 80 to 150W+ or directional antennas with tracking.

Most importantly: Always pair your power decision with the right antenna, consider legal restrictions, and prioritize thermal management. A smart 30W jammer with a 12 dBi antenna will often outperform a poorly cooled 100W unit with an omni antenna.

If you are designing or purchasing a drone jammer module, start by defining your required jamming range and target drone types, then work backwards to power. And remember – in electronic warfare, efficiency and antenna design beat raw wattage every time.
