Product Overview

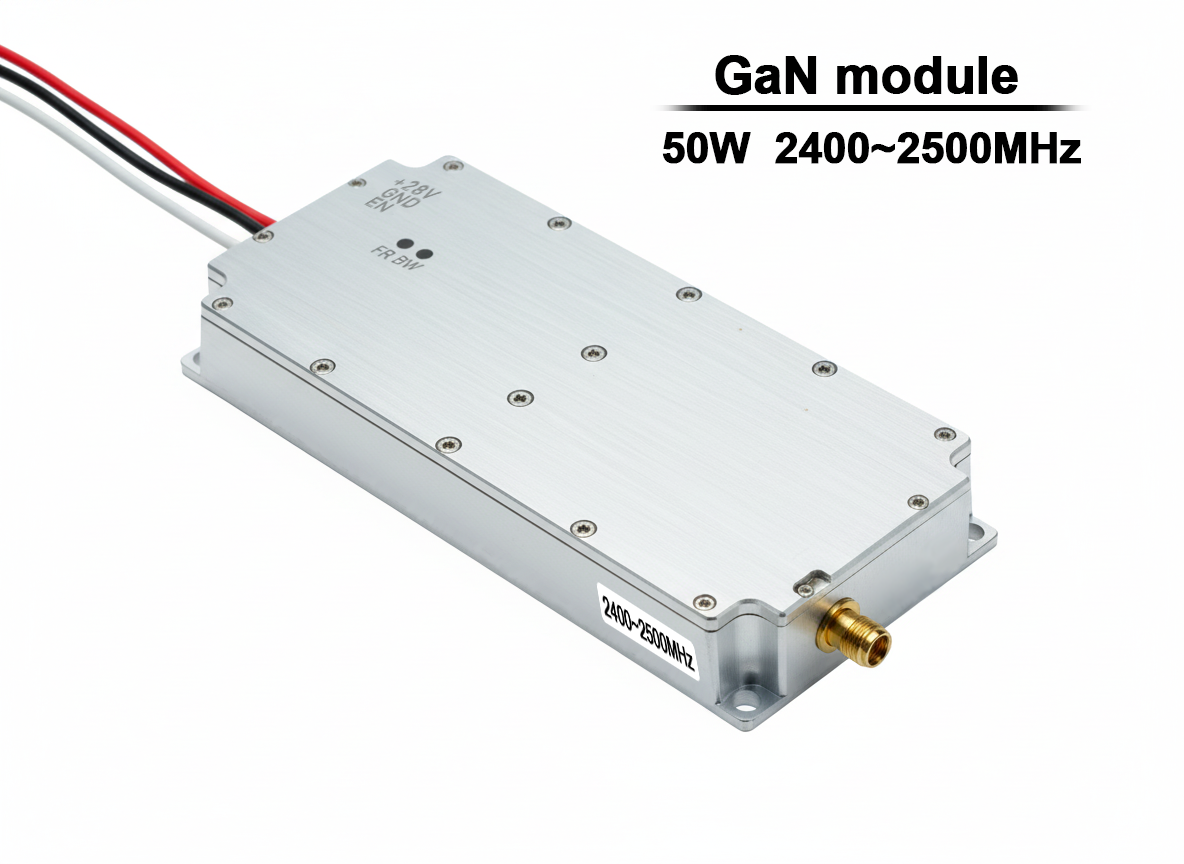

The 2400-2500MHz 50W GaN Jammer Module is a cutting-edge RF solution designed for the suppression of 2.4GHz ISM band signals, commonly used by commercial and tactical UAVs for control and video transmission. Built on Gallium Nitride on Silicon Carbide (GaN-on-SiC) technology, this module offers superior power density and thermal performance compared to traditional LDMOS or Silicon solutions.

This module features a high-efficiency Class AB design and is mounted on a premium copper base for optimized heat dissipation. With its compact size (18mm thickness) and integrated signal source, it is the perfect core component for handheld or stationary anti-drone systems.

Key Features

• Next-Gen GaN-on-SiC: Higher efficiency and better thermal conductivity for continuous high-power operation.

• Integrated Noise Source: Built-in high-speed noise modulation (270KHz) for maximum spectral disruption.

• Ultra-Compact & Lightweight: Only 300g, making it ideal for portable “drone gun” applications.

• Robust Protection: Integrated LED indicators for power status, over-voltage, and over-temperature alerts.

• High Customizability: Supports tailored frequency ranges and various input sources like VCO, DDS, or SDR.

Technical Specifications

Design & Reliability

Advanced Thermal Management

The module is installed on a high-conductivity copper base, ensuring that heat generated by the GaN transistors is rapidly moved away from the core components. This patented thermal treatment allows for a smaller footprint without sacrificing the 50W power output.

Intelligent Monitoring

The onboard LED system provides real-time feedback:

• Power Switch: Confirms active status.

• Over-Voltage: Protects circuitry from power surges.

• Over-Temperature: Alerts users to potential overheating, ensuring high reliability and longevity.

Applications

• 2.4GHz UAV Defense: Blocking WiFi-based drone control and live video feeds.

• WiFi/Bluetooth Suppression: Securing sensitive areas from wireless data leaks or unauthorized connections.

• Electronic Countermeasures (ECM): Integration into multi-band signal jamming platforms for public safety and military use.

• Portable Defense Units: Lightweight design is perfect for battery-operated handheld interceptors.

Customization Services

We offer full customization for bulk orders, including:

1. Input Source Logic: Integration with complex SDR-based jamming strategies.

2. Housing: Custom mounting holes or specialized heat sinks for specific enclosure requirements.

3. Frequency Tuning: Optimization for specific sub-bands within the 2.4GHz range.
