100W GaN Drone Jamming Module 4–6GHz: High-Power Anti-UAV RF Amplifier Q&A

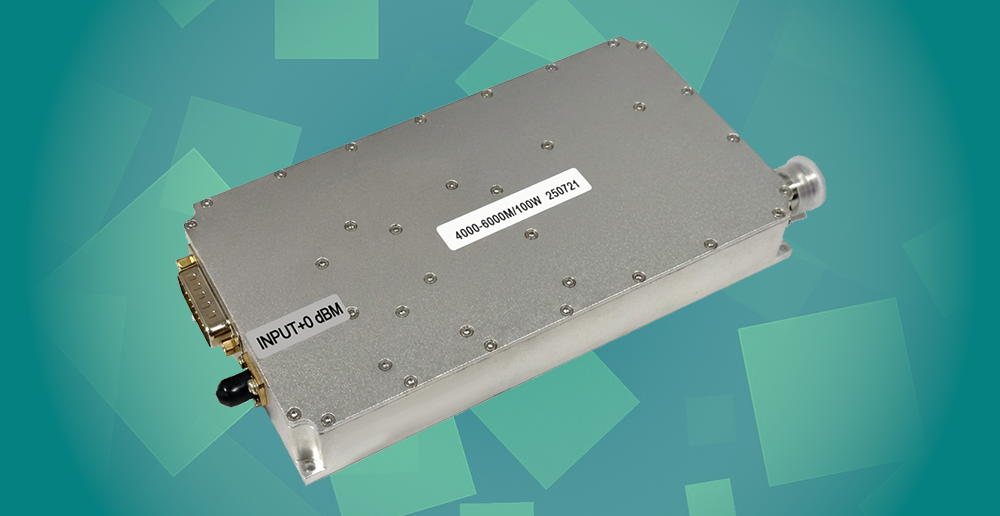

100W GaN Drone Jamming Module 4–6GHz

Q1: What is the primary purpose of this 100W GaN drone jamming module?
A: This module is a high-power RF amplification unit designed for counter-drone and anti-UAV electronic warfare systems. Operating from 4GHz to 6GHz, it amplifies jamming signals to disrupt high-frequency UAV control links, telemetry, and data transmission channels, making it a core component in fixed, vehicle-mounted, or portable drone jammers.

Q2: What makes the 4–6GHz frequency range critical for anti-UAV operations?
A: Many modern drones operate their command, telemetry, and high-bandwidth video links within the C-band (4–8GHz). Covering 4–6GHz allows effective targeting of these critical communication bands, ensuring jamming signals can override both consumer and advanced commercial UAVs.

Q3: What technology enables the module’s high power and efficiency?
A: The amplifier uses GaN on SiC (Gallium Nitride on Silicon Carbide) technology with a Class AB architecture. This combination delivers 100W continuous RF output, high drain efficiency (~30%), and excellent thermal stability, allowing sustained jamming missions without performance degradation.

Q4: What are the key electrical characteristics engineers should consider?
A: Key specs include:

• Frequency range: 4000–6000 MHz

• Output power: 100W CW (continuous wave)

• Power gain: 50 dB ±3 dB (with 0 dBm input)

• Input/output VSWR: ≤2:1

• Supply voltage: 28–30V DC, with typical current consumption of 11A at 100W output

• Harmonics: ≥10 dBc at 100W output

Q5: How is thermal management handled for continuous operation?
A: The GaN device is mounted on a copper sub-carrier for efficient heat conduction, and the module incorporates proprietary thermal management technology. It supports high duty-cycle and continuous jamming when properly attached to an external heat sink, with an operating case temperature range of -20°C to +85°C.

Q6: What monitoring and control interfaces are available?
A: The module provides:

• PA enable control (external TTL)

• Current monitor output

• Temperature monitor output (0.75V at 25°C, scaling 1°C / 0.01V)

• RS485 communication pins for integration with control systems

Q7: What RF and power connectors does it use?
A: RF input is MCX female, RF output is N female, and DC power is supplied via a through-core capacitor (male pin). This combination ensures secure connections and low loss for high-power transmission.

Q8: What are typical integration scenarios for this amplifier?
A: It’s commonly integrated into:

• Fixed drone jamming installations (e.g., airports, military bases)

• Vehicle-mounted counter-UAV platforms

• Portable or backpack-style jammers

• Critical infrastructure protection systems

Q9: Does the module support multi-signal jamming?
A: Yes. With its instantaneous bandwidth of up to 5000MHz and high linearity, it can amplify complex broadband noise or multiple jamming signals simultaneously, effectively covering multiple UAV communication channels.

Q10: What environmental conditions can it withstand?
A: The module is rated for:

• Operating case temperature: -20°C to +85°C

• Storage temperature: -40°C to +105°C

• 95% relative humidity (non-condensing)
  Its rugged design supports field deployment in demanding defense and security environments.

Q11: How does the module’s size and weight affect system design?
A: With dimensions of 168.5 × 82.8 × 26.5 mm (without connectors) and a weight of just 0.75 kg, it offers high power density. This compact footprint simplifies integration into space-constrained systems like portable jammers or drone-mounted counter-UAV payloads.

Q12: What are the recommended input power and protection limits?
A: Typical input power is -2 dBm ±3 dB, with a maximum input power (no damage) of 5 dBm. Keeping the input within these limits ensures optimal gain and prevents overdriving the amplifier.

Q13: Is this drone jammer module suitable for both stationary and mobile anti-UAV systems?
A: Absolutely. Its robust mechanical design, combined with high efficiency and thermal resilience, makes it suitable for stationary installations that require 24/7 readiness as well as mobile platforms where vibration and variable ambient temperatures are factors.
