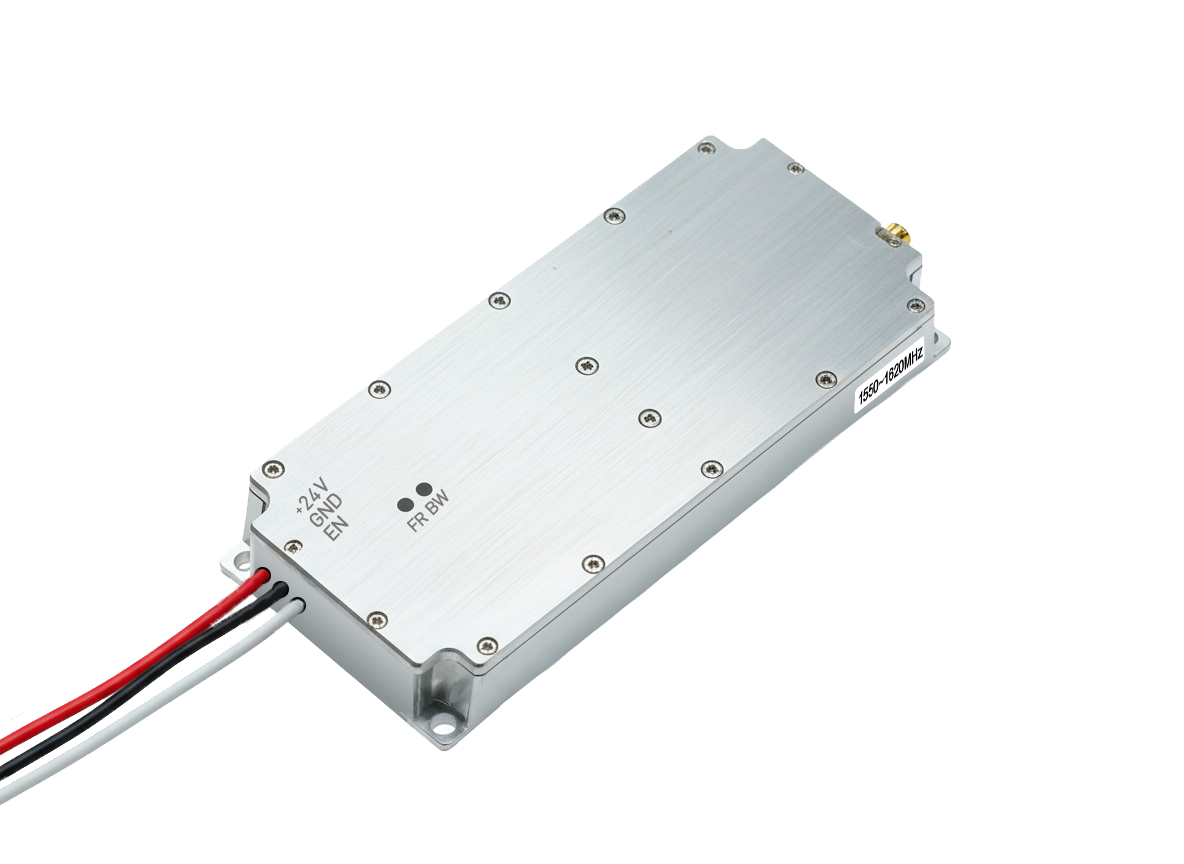

SZMP1517HP100F1 High-Power RF Interference Module

The SZMP1517HP100F1 is a professional-grade RF interference module engineered for industrial, research, and controlled testing environments. Designed to deliver stable and reliable performance, this module covers the 1550–1620 MHz operating band and provides 100W high-power output, making it suitable for electromagnetic testing, signal shielding experiments, RF performance evaluation, and system integration projects requiring robust interference capability.

Key Features

Wide Operating Frequency Band: 1550–1620 MHz

Optimized for applications requiring stable performance across a broad mid-band RF range.

High Output Power: 100W

Delivers strong and consistent RF energy for laboratory testing, shielding experiments, and industrial integration.

Built-in High-Speed Frequency Sweeping Source

Ensures wide-spectrum coverage and enhances signal interference effectiveness in authorized test scenarios.

Built-in Absorbing-Type Standing Wave Protection

The internal VSWR protection mechanism improves system safety and reliability, even under mismatched load conditions.

High Efficiency ≥ 40%

Designed for improved power utilization and reduced thermal load during continuous operation.

Flexible 24V–29V DC Input

Supports a broad operating voltage range, enabling compatibility with various industrial power systems.

Convenient Switch Control

• +5V or Open: ON

• Ground: OFF
  Simple trigger control for easy system integration.

SMA Female Output Connector

Standard RF connector for seamless integration with test platforms, antennas, or shielding systems.

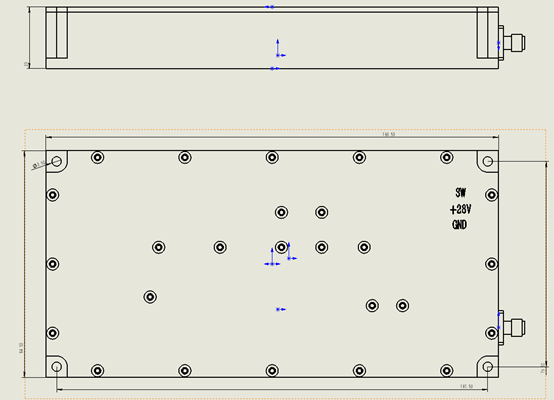

Compact & Lightweight Design

• Dimensions: 168.5 × 84.5 × 23 mm

• Weight: 0.55 kg
  Small footprint, ideal for embedded systems or portable RF setups.

Applications (Within Legal and Authorized Usage Only)

The SZMP1517HP100F1 module is intended strictly for lawful, compliant, and controlled-environment use, including:

• RF signal testing and laboratory research

• Electromagnetic compatibility (EMC) experiments

• Shielding chamber interference simulations

• Industrial system integration requiring controlled RF emission

• Engineering validation for communication equipment

Why Choose the SZMP1517HP100F1?

This module combines high output power, broadband frequency coverage, reliable protection circuitry, and a compact form factor, making it an excellent choice for engineers and researchers requiring dependable RF interference performance in professional environments.
