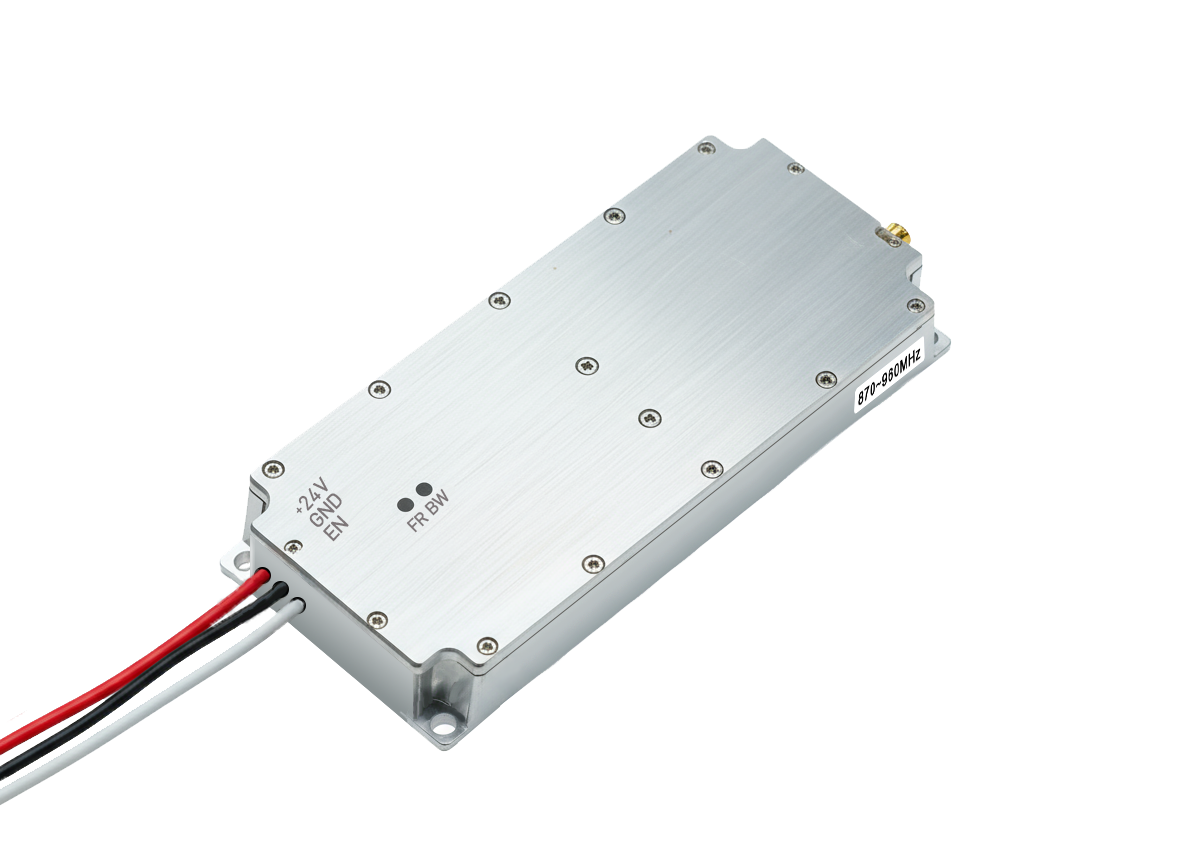

The SZMP0810HP100F1 is a compact, high-performance RF module engineered for effective drone neutralization. Operating across the 870-960MHz frequency band with a powerful 100W output, this module is designed for seamless integration into professional anti-drone and UAV countermeasure systems. Its robust build, integrated frequency sweeping source, and advanced protection circuits make it a reliable core component for critical security applications.

Core Features & Benefits

• Wideband High-Power Jamming: Delivers 100W of effective jamming power across the 870-960MHz spectrum, effectively disrupting control, telemetry, and GPS/GNSS signals used by unauthorized drones.

• Integrated Frequency Sweeping Source: The built-in high-speed sweeping source ensures dynamic and agile jamming, making it harder for drones to hop frequencies or maintain a stable link.

• Robust Standing Wave Protection: Features built-in absorbing-type VSWR protection, safeguarding the module from damage due to antenna mismatch or faults, ensuring high operational reliability.

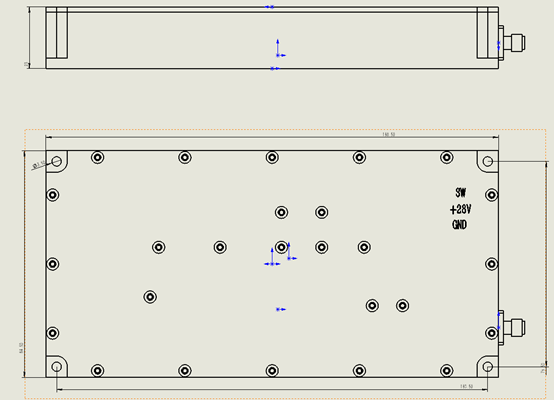

• Compact & Efficient Design: With a low-profile form factor (168.5 x 84.5 x 23mm) and high efficiency (≥40%), it is ideal for systems where space and power consumption are critical constraints.

• Simple Control Interface: Easy to operate with a simple +5V/Open or Ground signal for ON/OFF switch control, facilitating quick integration with system controllers.

Technical Specifications

Applications

The SZMP0810HP100F1 module is designed for integration into a wide range of counter-UAV (C-UAV) solutions, including:

• Fixed Site Security: Protecting critical infrastructure such as government buildings, power plants, and correctional facilities.

• Mobile Deployment Units: Integrated into vehicle-based anti-drone systems for rapid response and perimeter defense.

• Portable Drone Jamming Systems: Used as the core RF component in man-portable, backpack-style jammers.

• Event Security: Providing a protective RF shield during large public events, sporting events, and diplomatic gatherings.

Why Choose the SZMP0810HP100F1 Module?

This drone jammer module stands out due to its optimal balance of high power, comprehensive frequency coverage, and built-in reliability features. The absorbing-type standing wave protection ensures the module can withstand demanding operational environments, while the integrated sweeping source provides modern and effective jamming. Its standard DC voltage input and simple control logic make it a versatile and developer-friendly choice for system integrators worldwide.
