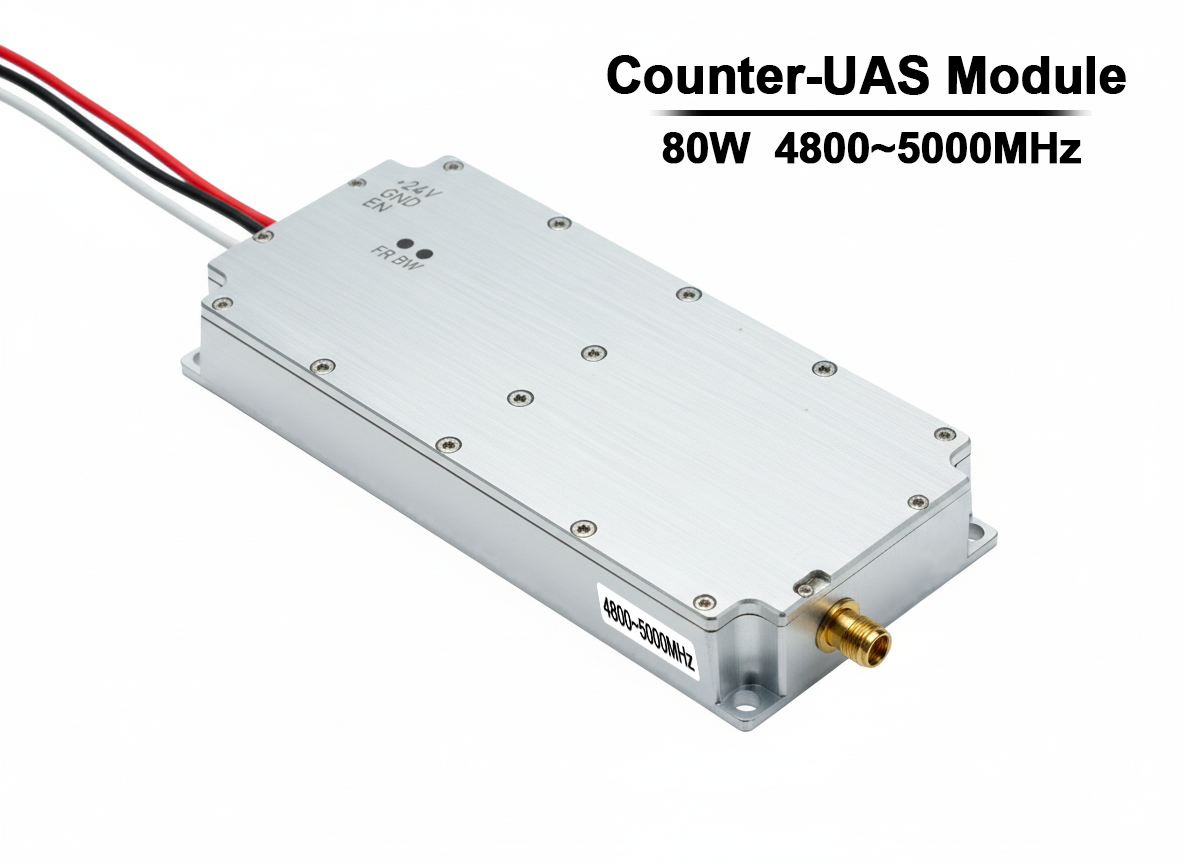

80W C-Band RF Jammer Module for 4800-5000MHz Spectrum Denial

The 80W RF Jammer Module is a precision-engineered solution designed to generate powerful wideband interference across the 4800-5000MHz (5GHz C-band) frequency range. This compact, integrated analog unit is purpose-built to disrupt modern threats operating in this spectrum, including commercial drone video transmission links, control signals, and high-bandwidth data links. Featuring a built-in high-speed sweep generator and robust VSWR protection, it offers a reliable, plug-and-play jamming core for advanced countermeasure systems.

With 80W of saturated output power, this module is engineered for critical applications requiring effective denial of 5GHz-based communications within tactical ranges. Its high-efficiency design ensures optimal performance for mobile, portable, and fixed-site security and electronic defense platforms where size, weight, and power consumption are key considerations.

Core Features and Operational Benefits

• Targeted High-Frequency Jamming: Provides focused, high-power jamming in the 4800-5000MHz band, a key spectrum for ISR (Intelligence, Surveillance, Reconnaissance) drone payloads and modern communication systems.

• Integrated Signal Generation: Equipped with an internal high-speed sweep source, eliminating the need for an external complex RF generator and simplifying system integration.

• Robust Amplifier Protection: Incorporates absorptive VSWR protection circuitry to safeguard the module against damage from antenna mismatches or faults, ensuring high field reliability.

• Optimized Power Efficiency: Operates at ≥35% efficiency from a standard 24-29VDC supply, balancing high output power with manageable thermal dissipation and current draw.

• Standardized Control Interface: Simple TTL-compatible switch control (ON: +5V/Open, OFF: GND) allows for easy remote or automated system integration.

• Compact and Ruggedized Housing: The shielded, aluminum chassis provides durability and EMI protection in a lightweight, industry-standard form factor suitable for diverse deployment scenarios.

Key Electrical & RF Parameters

For detailed integration and performance analysis, refer to the comprehensive specifications below.

Application Environments

This module serves as a critical component in systems designed to establish localized RF dominance in the 5GHz C-band.

• Counter-UAS (Drone) Operations: Neutralize hostile or intrusive drones by jamming their primary video downlink and control frequencies in the 4.8-5.0 GHz range.

• Tactical Communication Denial: Disrupt enemy data links, surveillance feeds, and other high-bandwidth C-band communications in defined areas.

• Critical Site Security: Deploy within fixed or mobile systems to protect sensitive venues, infrastructure, or events from aerial surveillance or data interception threats.

• Electronic Warfare (EW) & Training: Employ in EW suites for force protection or as an effects simulator in training environments to replicate adversarial jamming capabilities.
