Product Overview

The 4800~5000MHz DDS Signal Source Module is a high-performance digital frequency synthesis solution designed for precision RF applications. Operating in the 4.8GHz to 5.0GHz band, this module offers exceptional stability and fine-tuned control over power output.

Equipped with an RS485 control interface, it allows for seamless integration into automated testing environments. The module supports a wide voltage input range and features a robust SMA female output connector, making it a versatile choice for telecommunications, laboratory testing, and signal interference applications.

Key Features

• Wide Frequency Range: Operates consistently between 4800MHz and 5000MHz.

• Precision Power Control: Digital attenuation allows for a 31.5dB adjustment range with 0.5dB increments.

• Flexible Power Input: Supports a wide DC voltage range from 12V to 29V.

• Industrial Grade Control: Integrated RS485 interface for reliable remote command and configuration.

• Compact & Lightweight: Slim aluminum alloy housing for excellent heat dissipation and easy installation.

Technical Specifications

Applications

1. Wireless Communication Testing: Ideal for verifying components in the 4.8-5.0GHz spectrum.

2. Signal Simulation: Used in R&D labs to simulate specific frequency interference or carrier signals.

3. Industrial Automation: Easily integrated into larger RF systems via the RS485 bus.

4. Calibration Services: Stable output power and frequency for equipment calibration.

Dimensions & Connectivity

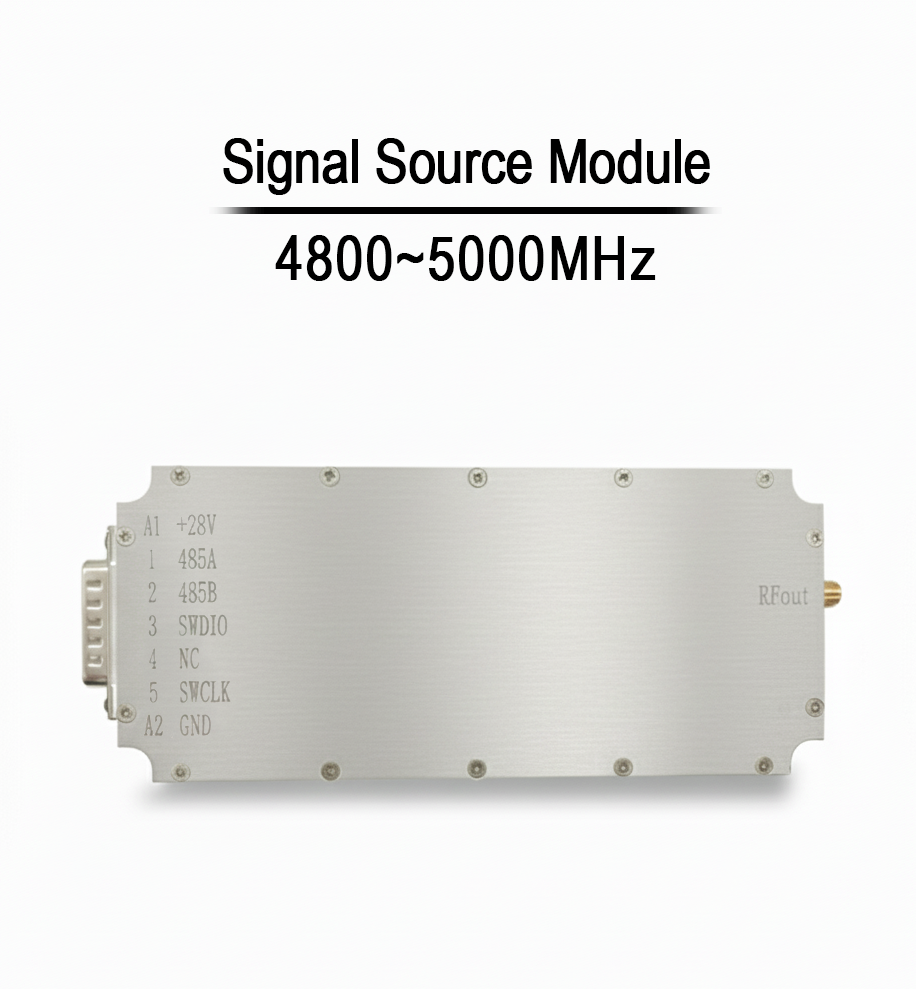

The module features a slim profile (146 × 63 × 17.5  mm), ensuring it fits into tight rack spaces or portable enclosures. The 7W2 connector handles both power supply and control signals, simplifying the wiring process for industrial deployments.

Note: Ensure proper heat sinking if operating at maximum voltage for extended periods to maintain signal spectral purity.
